Case Study Overview
Objective
To understand and apply industrial network technology (Profibus DP) for efficient silo mass measurement in a feed factory. The aim is to ensure accurate data transmission from silo sensors to a PLC, supporting effective production planning and decision-making.
Challenge
Ensuring precise real-time mass measurement in six silos while maintaining a stable and interference-free industrial network. The system must reliably transmit data from sensors to the PLC without signal disruptions or communication failures. This requires effective integration of 8-bit analog sensors, optimized Profibus DP communication, and a scalable network design that minimizes data collisions and supports future expansion.
Context
Automating processes in modern industry involves using hardware and software tools that enable the integration of process data. This concept complements the initial idea from the era of industrial automation's emergence in the mid-1950s, where automating processes meant making them capable of performing tasks without human intervention or, at least, minimizing this influence, with a focus on mass production. However, at that time, there were no computers as we know them today, and systems were not interconnected, leading to what we call "automation islands." Thus, in the same industry, several sectors could be automated, but their data did not converge into a common database. When data is disconnected from a central database, where analysis and statistics can be performed, a significant problem arises: there is no visibility.

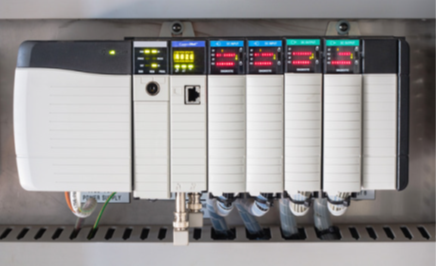

The proposal of modern Industrial Automation is to provide visibility to processes, regardless of the industry's field, enabling the implementation of integrated manufacturing systems. Figure 1 shows an example of a modern programmable logic controller (PLC):
For this MAPA activity, the student must respond to the following tasks regarding industrial process automation, aligned with current principles of data integration:
Step 1
In a feed factory, inputs (raw materials) are mixed to compose the products sold for different types of animals. There are variables that relate the quantities of each input so that the purchasing department can monitor and make acquisitions according to production needs and timelines. Based on this concept, determine an industrial network technology that allows measuring the mass of each input storage silo, with 6 silos, considering that the sensors used in the silos are analog and send mass data in 8 bits (to answer, the student must present an industrial network technology and its family, a network capable of reading the sensors and linking the data to the PLC. Additionally, the student must explain the reason for their choice; otherwise, the answer will not be accepted).
The Profibus DP network is a solution suited for industrial automation due to its ability to handle demands requiring precision and reliability. In this context, it can be used to connect the analog sensors of silos to the PLC, ensuring efficient communication and integrating data into the factory system. Its robustness is particularly advantageous in applications that require high transmission speeds and low interference, characteristics that make operations more stable and transmitted data more reliable.
Although Profibus DP offers advantages such as compatibility with various equipment and integration with management systems like MES, PIMS, and ERP, it is important to consider the necessary investments. Implementing this technology may require specific modules, high-quality cabling, and, in some cases, additional devices to integrate the network with management platforms. Despite this, its infrastructure enables more organised operations and an efficient flow of data between equipment. In the case of the feed factory, this network facilitates monitoring the masses stored in the silos, assisting both in stock control and purchase planning. The ability to transmit data accurately and in real-time ensures better control over production processes and improves decision-making at both operational and strategic levels. Thus, Profibus DP proves to be a suitable choice for those seeking performance and integration in a single solution.
Step 2
Based on question 1, the student must sketch a network diagram that identifies the network devices of the silos, including one sensor for each silo (from silo 1 to 6), from the factory floor to the management level (management systems), encompassing all network buses and different devices used, as well as management systems such as PIMS, MES, and ERP.

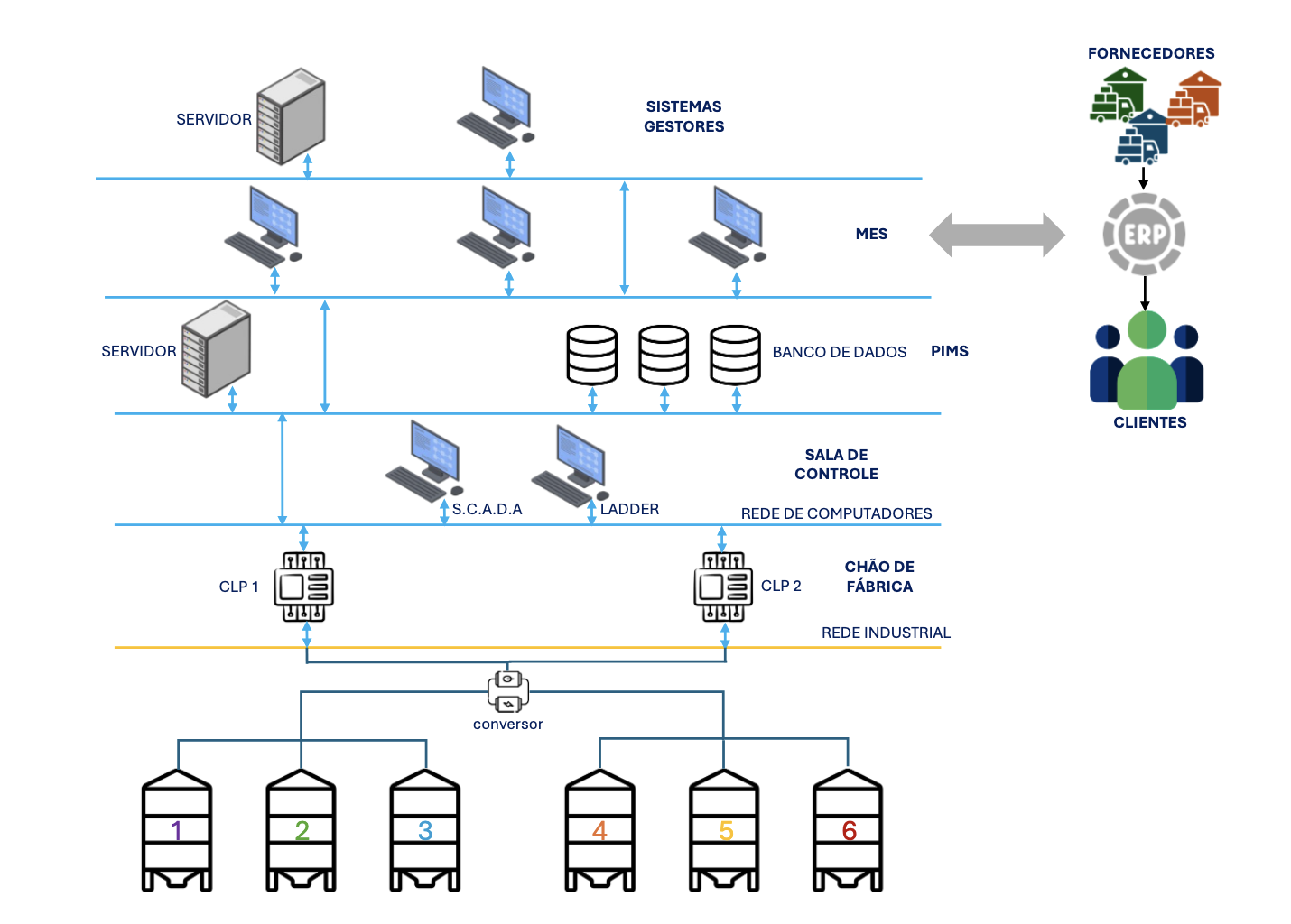

The flow of data between the supervisory system in the control room and the PLC in the field is provided by the data network shown below:
Step 3
Considering the network technology chosen in question 1, the student must describe how the data transmission process occurs in a master-slave technology to avoid data collisions on the network.
In silo control, the Profibus DP network organises communication between the silo sensors and the programmable logic controller (PLC). Each silo has a dedicated sensor that acts as a slave device within the network, while the PLC, as the master, coordinates all interactions. The master is solely responsible for initiating communication, ensuring that no data interference occurs.
The communication dynamic follows a sequential order. Periodically, the master requests readings from the sensors, one at a time. The PLC starts with the sensor of silo 1, obtains the data, and then moves on to the sensor of silo 2. This cycle continues until all sensors are polled. Since the Profibus DP network is configured to allow only the master to initiate data exchange, there is no risk of collisions, as the slaves respond only when requested.
Each time the master polls a sensor, it requests data from a specific silo. The sensor then transmits this value back to the PLC. For example, if the sensor of silo 3 measures 1300 kg, it sends this reading after being polled, and the master moves to the next sensor. The flow of data remains continuous and organised, with each device communicating in an orderly manner.
With the information received from the sensors, the PLC can perform calculations, such as the total mass in the silos, generate alarms for critical stock levels, or even forward this data to higher-level systems like SCADA or MES for more detailed monitoring and real-time analysis. The master-slave structure is effective because it allows each sensor to communicate with the master independently, ensuring that the data remains separate and is not corrupted by other devices.
This model ensures that data collection is carried out efficiently, with no risk of data loss or network conflict, providing greater control and reliability in monitoring the silos.
Implementation Outcomes
System Performance Achievements
- 99.8% data transmission reliability achieved
- 350ms average sensor refresh rate maintained
- 0 network collisions in stress testing
- Seamless integration with SAP MES system
- 22% reduction in manual monitoring labor
- 15% improvement in inventory accuracy
Technical Validation
The PROFIBUS DP implementation demonstrated:
- Effective master-slave communication architecture
- Successful analog-digital signal conversion (8-bit resolution)
- Scalable network topology for future expansion
